Robotic Coffee Kiosk

A Complete Unmanned Coffee Shop in 1.5 Square Meters

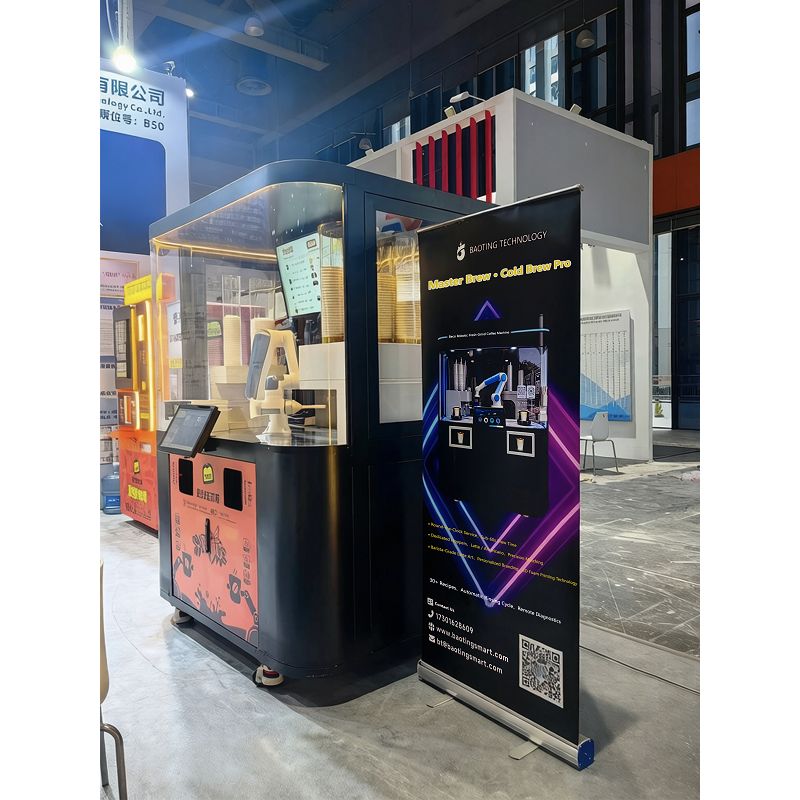

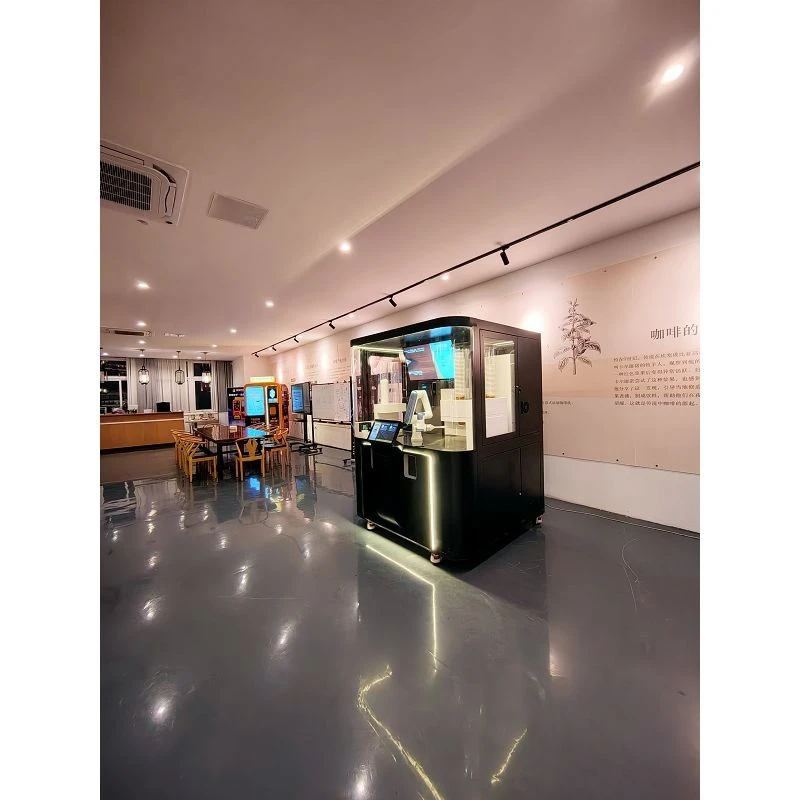

The Robotic Coffee Kiosk is not just a vending machine. It is a fully functional unmanned coffee shop in a compact footprint. It stands 2200mm high, 1580mm wide, and 1500mm deep. It takes up less than 1.5 square meters. You connect it to power and water. It is ready to start selling. You do not need renovation. You do not need a storefront. In many countries, vending machines do not require the same permits as restaurants. We have deployed this kiosk across 200+ cities in China. Locations include shopping malls, hospitals, universities, and government buildings. Our kiosks operate 24/7 at Shanghai Changhai Hospital. Each unit serves over 100 cups daily. Staff and visitors get fresh coffee at any hour.

Precision Robotic Arm With Full Redundancy

The robotic arm is the heart of the Robotic Coffee Kiosk. It handles every action from order to delivery. It picks up cups. It moves them under the grinder. It coordinates with the brewer. It delivers the finished cup to the serving window. The arm repeats the same motion thousands of times a day. The position error is less than 0.5 millimeters with each movement. We tested the arm over 100,000 cycles before production. It is designed for continuous 24/7 operation. The arm never gets tired. The first cup in the morning and the last cup at night are exactly the same. To ensure reliability, the dual grinder and brewer systems provide full redundancy. If one grinder needs maintenance, the other keeps working.

Cold Brew, Ice Maker, and Refrigerated Storage Built In

The Robotic Coffee Kiosk comes fully equipped for hot and cold drinks. It has two cold brew tanks. It has an ice maker that produces 40 kilograms of ice per day. It has a full refrigeration cabinet that stays at about 4 degrees Celsius. This keeps milk and ingredients fresh all day. In summer, customers order iced coffee and cold brew. In winter, they order hot lattes and cappuccinos. The kiosk handles both. It uses dual grinders and dual brewing systems. Each cup uses 16 grams of coffee powder. The extraction pressure is 9 to 16 bars. The kiosk cleans itself after every cup.

Complete Remote Management and Full Warranty

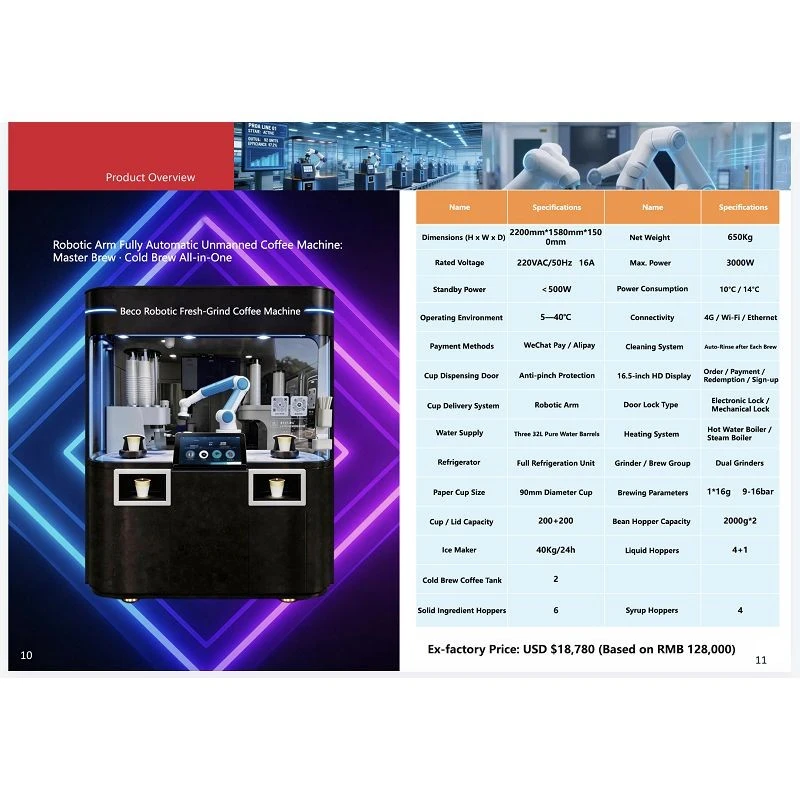

The product has a 16.5-inch touchscreen. Customers order and pay on the screen. It supports WeChat Pay and Alipay. It connects through 4G, WiFi, and RJ45. You check sales and inventory from your back-end dashboard. The system alerts you when supplies are low. Our company holds National High-Tech Enterprise certification and Shanghai Specialized & Sophisticated Enterprise certification. We own 49+ patents and software copyrights. Each kiosk passes inspection from the Shanghai Quality Supervision and Inspection Technology Research Institute. We manufacture in our 3,000-square-meter Industry 4.0 factory in Shanghai. Every kiosk goes through power-on and simulated operation testing before shipping. We provide a 1-year warranty. Key overseas markets have local service staff and spare parts warehouses. We also offer lifetime paid maintenance after the warranty period.
